AC1200 Dual Band Wireless IoT Security Hub

SH1200G-COMBO

• Complies with IEEE 802.11ac/a/n/g/b standards

• 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1200Mbps simultaneously

• Provides 64/128-bit, WPA, WPA2 and WPA-Mixed security

• RTD1295 Chip, 2GB DDR4 16GB eMMC

• Playing live camera video, scheduled recording

• Send push notification to mobile phones when the device detects triggered events

• Support HDMI IN PIP Video recording and SATA Hard Disk, UHD 4K Output

• Support 4CH Camera streaming with 720P resolution at the same time on HDMI Monitor

• Optional USB BLE Gateway Communicates with BLE Sensor such as Door sensor, PIR Sensor and others

• allLink P2P Suites support Plug and Play configurations(NO DDNS, NO PC required for SW configration)

• allLink P2P Suites facilitates interactions between any smart nodes in the IOT network, controlling sensors, recording videos and others

• Super speed USB3.0 Host and High speed HDMI 2.0 for storage devices

• Support H.265/HEVC HW decoding

• Build in mobile rack for 2.5 inch SATA3.0 HDD

• Easy setup with auto-popup window simplifies the basic settings

• Free APPS(Android and Ios and PC)

Contact Us

CPURealtek RTD1295DD ARM Cortex-A53 Quad-Core Processer
GPUARM T820 GPU=Mail 450 Octa-Core equivalent
Memory2GB DDR4 up to 2400MHz
Flash8GB/16GB/32GB eMMC (Option)
4x PoE LAN10/100/1000M RJ45 Ethernet Ports(Auto MDI/MDIX)
1x WAN10/100/1000M RJ45 Ethernet Port(Auto MDI/MDIX)
Wi-Fi Network802.11 a/b/g/n/ac. 2.4G/5G Dual Channel Wi-Fi
SD Card SupportSupport SD3.0, Up to 128GB
Interface

1 x WAN : 10/100/1000M RJ45 Ethernet Ports(Auto MDI/MDIX)

4 x PoE LAN : 10/100/1000M RJ45 Ethernet Ports(Auto MDI/MDIX)

USB Host : 2 x USB 2.0, 1 x USB3.0 Slave, 1 x Type-C

HDMI : 1x HDMI Output(3840x2160@60P 10BIT, HDMI2.0a), 1x HDMI Input(HD PVR)

HDD : 1 x SATA 3.0, Up to 10TB HDD

1x Optical SPDIF

1x LCD touch panel support Device setup and indicate operational status

Antenna2 x 2.4/5GHz 5dBi Shared Antenna
Operating temperature0 ~ 40℃
Storage temperature-20 ~ 70℃
Humidity10 ~ 95% non-condensing
Dimension188(W) x 172(H) x 60(D)mm

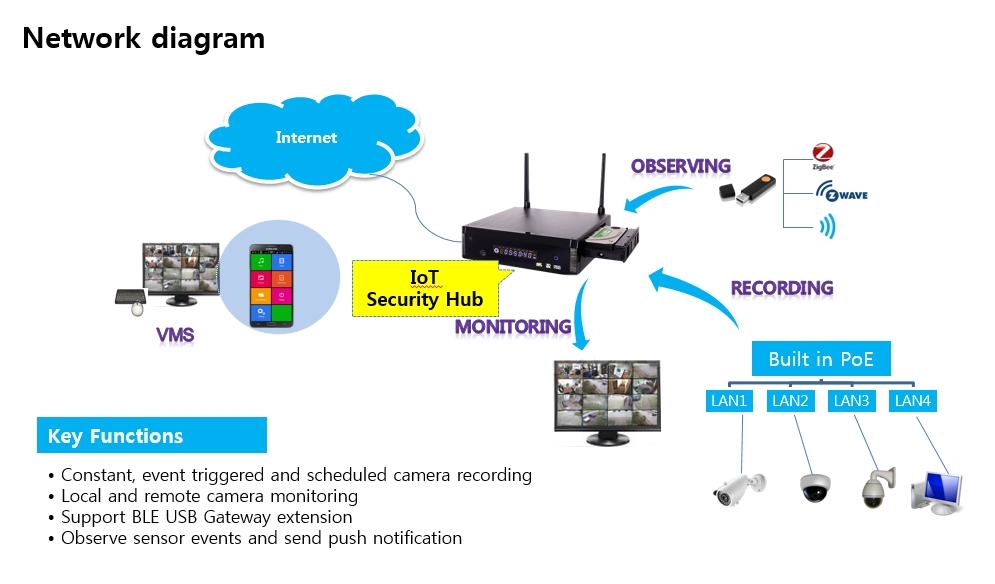

AC1200 Dual Band Wireless IoT Security Hub Product Overview

The AC1200 Dual Band Wireless IoT Security Hub is a professional-grade networking device developed by Hubei Songlei Network Technology Co., Ltd. It is designed for enterprise-class LAN and WAN scenarios, including office networks, campus deployment, surveillance systems and distributed network access. Every unit undergoes strict reliability testing to support 7x24 non-stop operation.

Engineered with high-quality components and industrial mounting options, the device fits desktop, rack and wall-mounted installations. Clear status indicators and a simplified configuration flow allow engineers to complete deployment quickly, reducing commissioning and maintenance costs.

Typical applications: SMB office networks, hotel networking, security monitoring access, smart-building projects, and network upgrades for education and healthcare institutions. It works seamlessly with the company's switches, routers, media converters and wireless range extenders to form complete networking solutions.

Purchasing service: Bulk orders and project-based supply are both supported. We provide model selection guidance, network design support and on-site technical assistance. All units come with official warranty; non-artificial damage is covered free of charge during the warranty period.

For detailed specifications, configuration guides or quotations, please visit our Contact page or call our hotline. Every order is shipped with proper warranty and after-sales support.
